VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Fort Worth, TX | Meridian Windows and Doors Fort Worth

The VLX 100 Swing / Entry Door is a modern aluminum entry door built around a simple idea: a clean, narrow frame, a full-height glass panel, and hardware that locks at multiple points along the jamb. Fort Worth homeowners choose it when they want strong curb appeal without heavy ornamentation, or when a ranch-style entry needs updating to something more contemporary. Meridian Windows and Doors Fort Worth is an authorized ViewLux installation partner, which means we order directly from the manufacturer, install to AAMA standards, and stand behind the work. If you’re pricing an entry door replacement, call (682) 708-0962 and we’ll walk you through costs for your specific opening.

Call (682) 708-0962

Product Overview – VLX 100 Swing / Entry Door

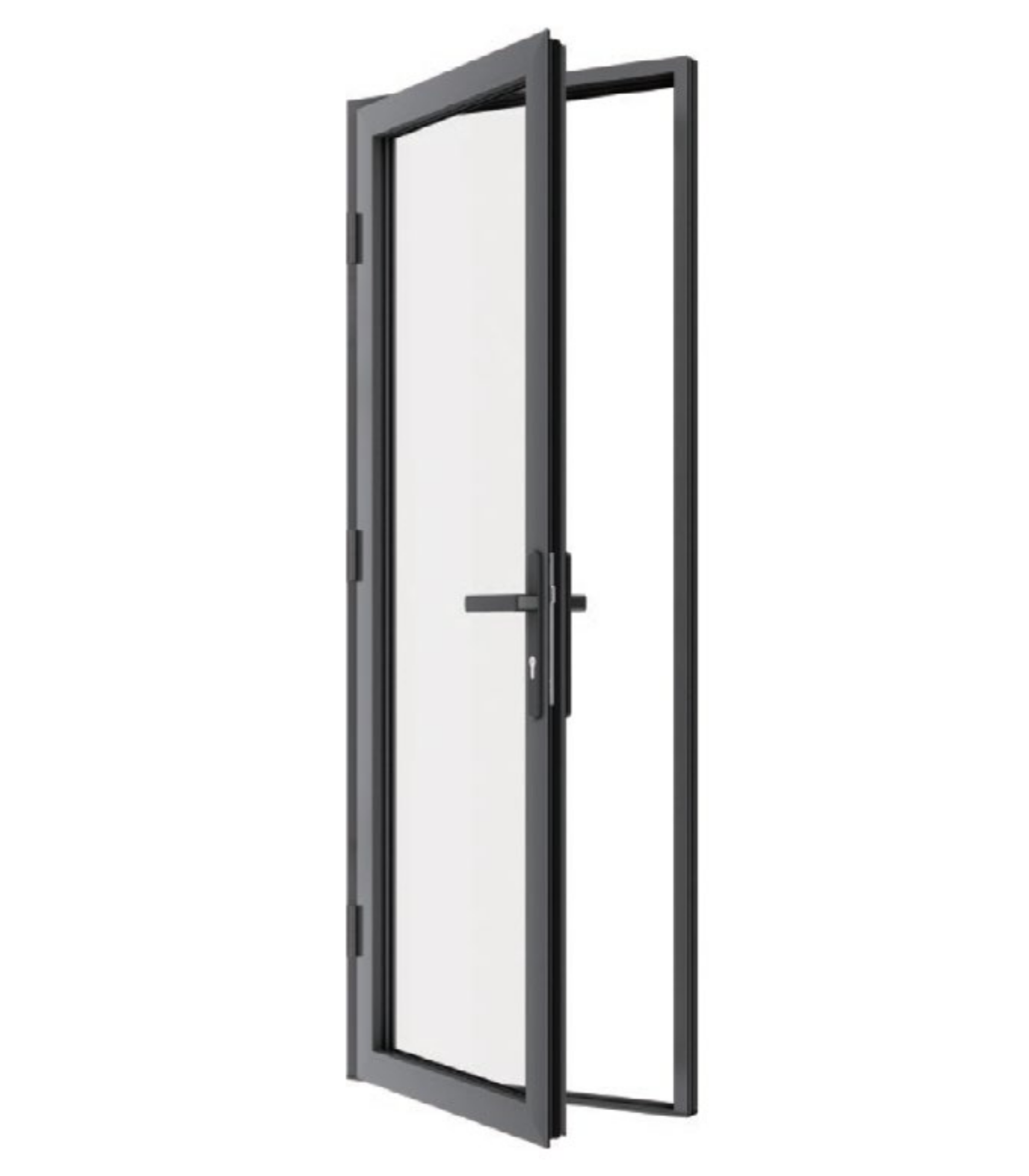

The VLX 100 is a single-entry aluminum swing door with a minimalist frame profile that measures just 2.56 inches wide. That narrow sightline is the whole point. The door reads as glass with a thin metal border, not a bulky frame with glass inside it. For mid-century ranch homes in Wedgwood, new builds in Walsh, or the transitional styles popping up across Tarrant County, it gives you modern architecture without gutting the rest of the house.

The frame is extruded aluminum with a wall thickness of 0.098 inches. That’s heavier than typical residential aluminum and it matters in two ways: the door doesn’t flex when a Fort Worth north wind hits it, and the multi-point locking system engages cleanly because the frame stays true. The lock throws bolts at the top, middle, and bottom of the panel in one turn of the handle. You get a tighter seal than a standard deadbolt-only setup, which helps with both security and air leakage.

This series is typically specified for front entries and patio-facing doors where the homeowner wants light, a clean look, and a product that won’t warp in Texas humidity. Aluminum doesn’t absorb moisture the way wood does, so you won’t deal with swollen doors in spring or sticking panels in August.

Technical Specifications

Here are the working numbers for the VLX 100. We list them because most Fort Worth buyers want to compare apples to apples before scheduling an estimate.

• Profile width: 2.56 inches (visible frame around the glass)
• Wall thickness: 0.098 inches (extruded aluminum)
• Maximum panel span: up to 48 inches wide
• Glass: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or none
• Locking: Multi-point hardware, engages at three points along the jamb
• Construction: Thermally broken aluminum frame

Panel widths are custom-fabricated to your rough opening, so you’re not forced into a stock size. The 48-inch maximum span covers most single entry doors in Fort Worth homes, including larger front door openings.

Performance Features

Aluminum doors have a reputation for poor energy performance, but that reputation comes from old non-thermal products. The VLX 100 uses a thermal break in the frame, and it’s tested through the NFRC system. Here’s how each part of the door handles Fort Worth conditions.

Thermal Efficiency

The frame is thermally broken, which means the interior and exterior aluminum are separated by a non-conductive material. Heat doesn’t transfer directly through the frame. With Low-E glass specified, you get an NFRC-rated assembly that reduces heat gain on west-facing entries, a real concern for homes in Benbrook and Aledo where afternoon sun pounds the front door.

Acoustic Performance

Fort Worth homes near I-30, 820, or the rail lines through the Near Southside deal with constant traffic noise. Laminated glass in the VLX 100 cuts sound transmission noticeably over standard clear glass. For bedrooms with exterior entries or home offices in converted front rooms, we often recommend laminated for this reason alone.

Airtightness & Weather Seal

The multi-point lock pulls the panel tight against three sides of the jamb, not just one point near the handle. That compression makes a measurable difference in air leakage. You’ll notice it most in winter, when cold air stops creeping around the door edges on the north side of the house.

Waterproofing

All perimeter joints get AAMA 812-rated low-expansion foam sealant during installation. The sill is set on a primary seal before the frame is anchored. We also verify the weather-stripping compression with a paper test after the door is hung. Fort Worth’s spring storms are notorious for driving rain at entry doors, and this is where leakage happens most often on poorly installed units.

Wind Resistance

The VLX 100 is wind-load rated for the local climate requirements in Tarrant County. The 0.098-inch wall thickness matters here. A thin, flimsy door panel will bow under pressure and break the seal. This door is built to stay put. Laminated glass adds impact resistance if you want extra protection from storm-blown debris.

Security & Hardware

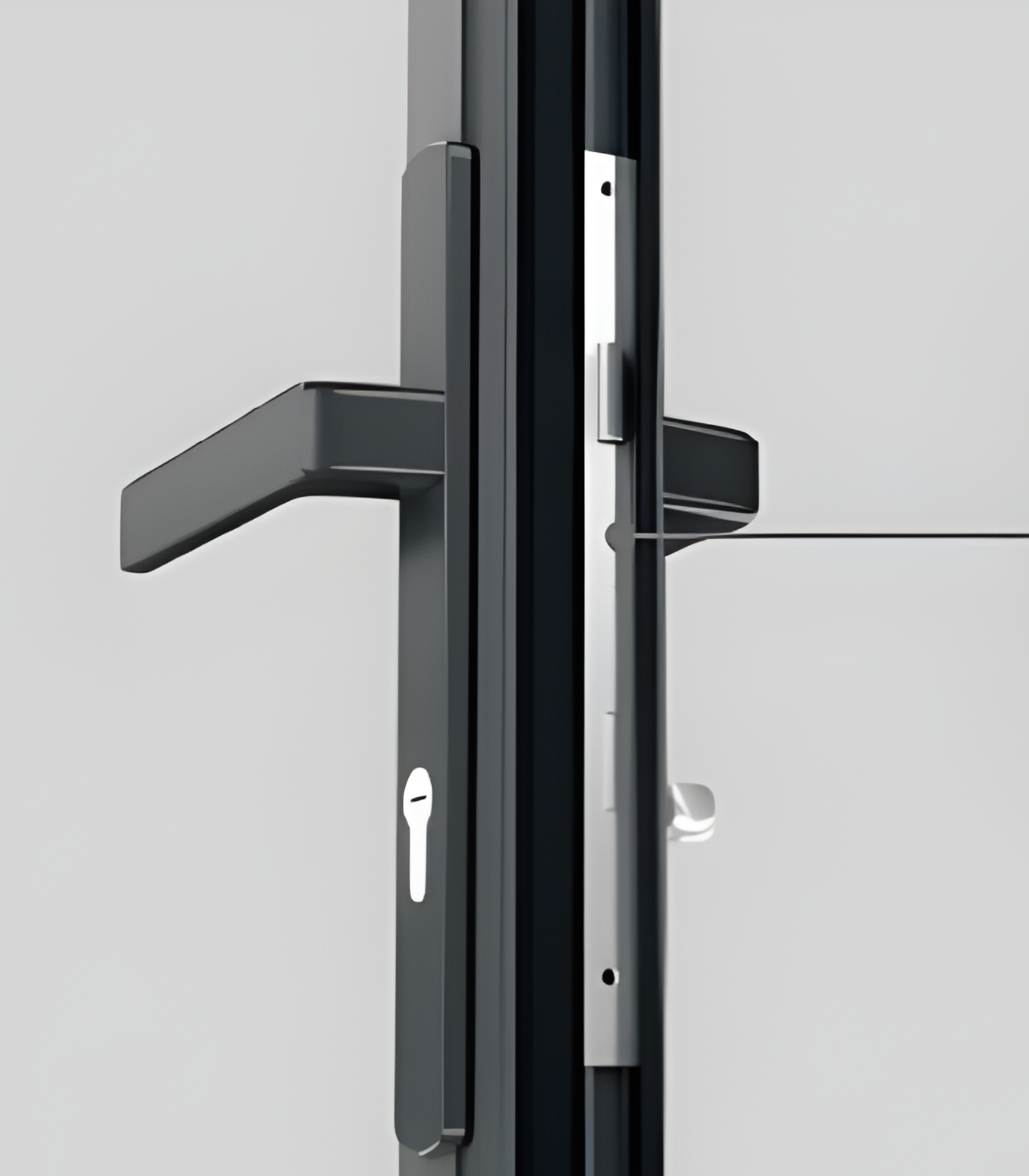

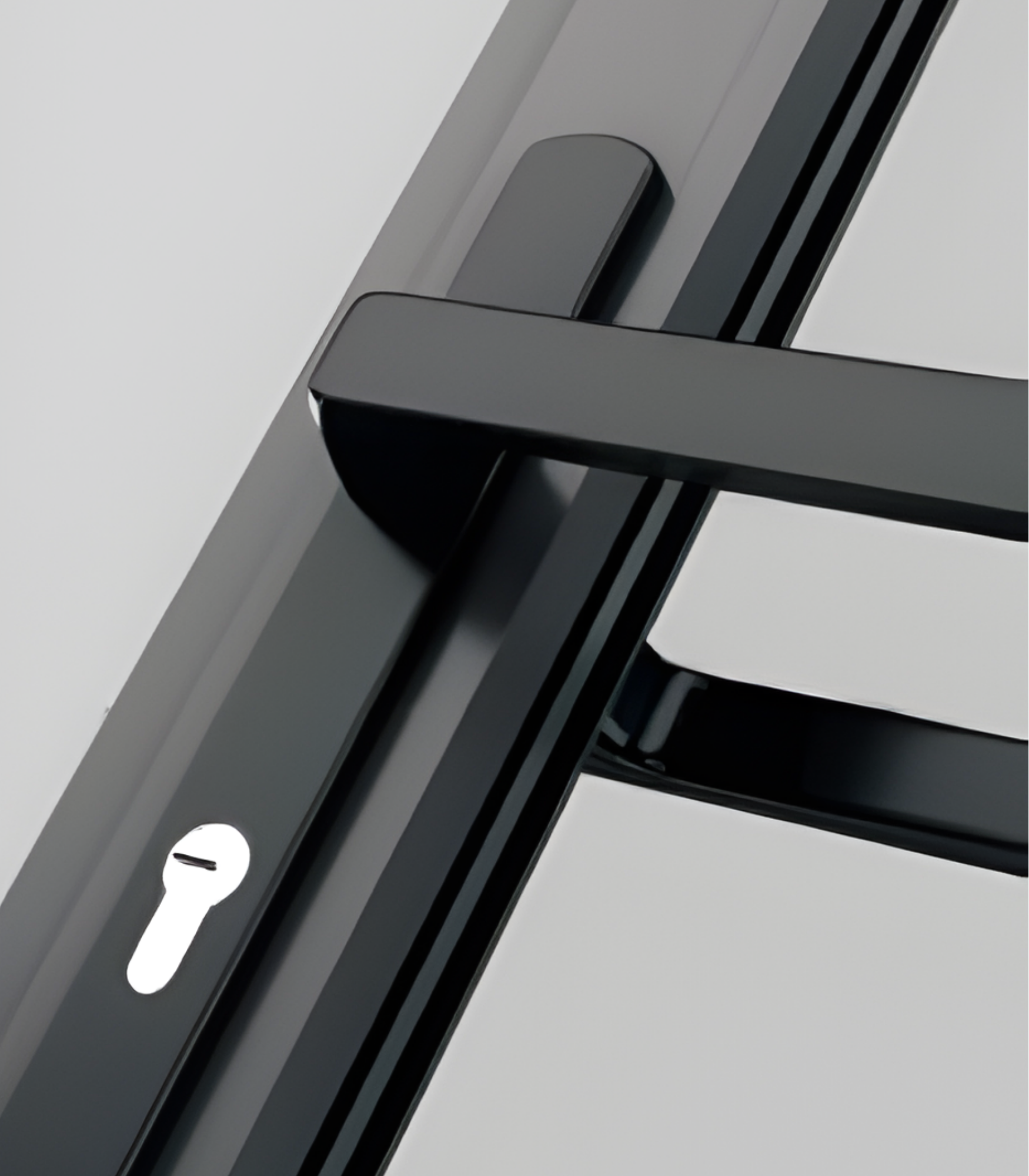

Three locking points beat one deadbolt, plain and simple. The hardware is integrated into the multi-point mechanism so the door locks top, middle, and bottom with one motion. It’s a real deterrent because it changes where the door resists forced entry, and it holds up over years of daily use.

Color & Glass Options

Six finishes are available on the VLX 100. Premium Black is the most requested finish for modern and modern-farmhouse front entries in Fort Worth, especially on white brick or painted white exteriors. It’s a strong contrast that reads well from the street. Pure White works for homes that want the door to disappear into the facade, which suits minimalist designs and small porches. Anodized Silver has an industrial, architectural feel that pairs well with metal roofs and contemporary construction.

Bronze and Champagne are the two finishes we see on higher-end traditional homes. Bronze is warm and understated, while Champagne reads more as a soft gold tone that suits stone exteriors. Teak Wood is a wood-grain aluminum finish. It’s the right choice when you want the look of a wood door but refuse to deal with repainting or warping in Fort Worth humidity.

Glass is a bigger decision than most people expect. Clear glass keeps the view and light, but shows everything inside your entry. Frosted and Obscure glass give privacy while still letting light through, which works well for doors that open directly into a living room. Low-E is our default recommendation on west and south exposures to cut heat gain. Tempered glass is standard for impact safety. Laminated glass is the upgrade for sound control and impact resistance. You can pair any glass type with any finish.

Installation by Meridian Windows and Doors Fort Worth in Fort Worth

We install every VLX 100 door to AAMA 2400 and AAMA 2410 standards, which govern residential door installation in North America. This isn’t a box-store install where a subcontractor shows up, hangs the door, and leaves. We run a defined process on every job in the Fort Worth area.

The first step is a pre-install inspection. We verify the rough opening dimensions, check the existing subfloor for rot or settling, and confirm the framing is square. We won’t hang a new door in an opening that’s out of square because you’ll feel it in the operation of the lock within a year. If the opening needs correction, we address it before the door arrives.

During the installation, the frame is set level, plumb, and square before it’s anchored. Every perimeter joint receives AAMA 812-rated low-expansion foam sealant. Low-expansion foam is critical here. Standard expanding foam pushes against the aluminum frame and can bow it slightly, which throws off the reveal lines and ultimately affects how the multi-point lock engages. We use the right product for aluminum frames, not whatever is in the truck.

After the panel is hung, we check weather-strip compression, verify the multi-point hardware engages cleanly, and run a water test on the sill and jambs. Then we clean the glass, remove the old door and all debris, and walk you through the operation and maintenance of the new door. The whole process typically takes one day for a single entry door.

One more thing that matters: improper installation voids the manufacturer’s warranty on most premium doors, including ViewLux products. The warranty covers defects in manufacturing, not mistakes made by whoever installed it. Meridian Windows and Doors Fort Worth is an authorized ViewLux installation partner in Fort Worth, so our work keeps your warranty intact.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Fort Worth

The VLX 100 Swing / Entry Door is a premium product, and the price reflects the engineering. If you’re serious about it, the next step is a free on-site measurement. We’ll verify your opening, quote your exact configuration, and give you a line-item number with no surprises. Call Meridian Windows and Doors Fort Worth at (682) 708-0962 to schedule your free estimate.

Written by the team at Meridian Windows and Doors Fort Worth, authorized ViewLux installation partner serving Fort Worth and the surrounding Tarrant County area.
