The VLX 150 Heavy-Duty Sliding Door is built for Fort Worth homes that demand oversized glass openings without sacrificing strength. This is a large-span aluminum slider engineered around a 2.95-inch profile and a 0.118-inch wall thickness, which means it handles openings up to 24 feet wide while staying square, plumb, and smooth to operate. We’re Meridian Windows and Doors Fort Worth, a ViewLux-authorized installation partner serving Tarrant County and the greater Fort Worth area. When you buy the VLX 150 through us, the product and the installation come from one accountable team. Call (682) 708-0962 to talk through your opening dimensions and get a straight answer on pricing.

Call (682) 708-0962

Product Overview – VLX 150 Heavy-Duty Sliding Door

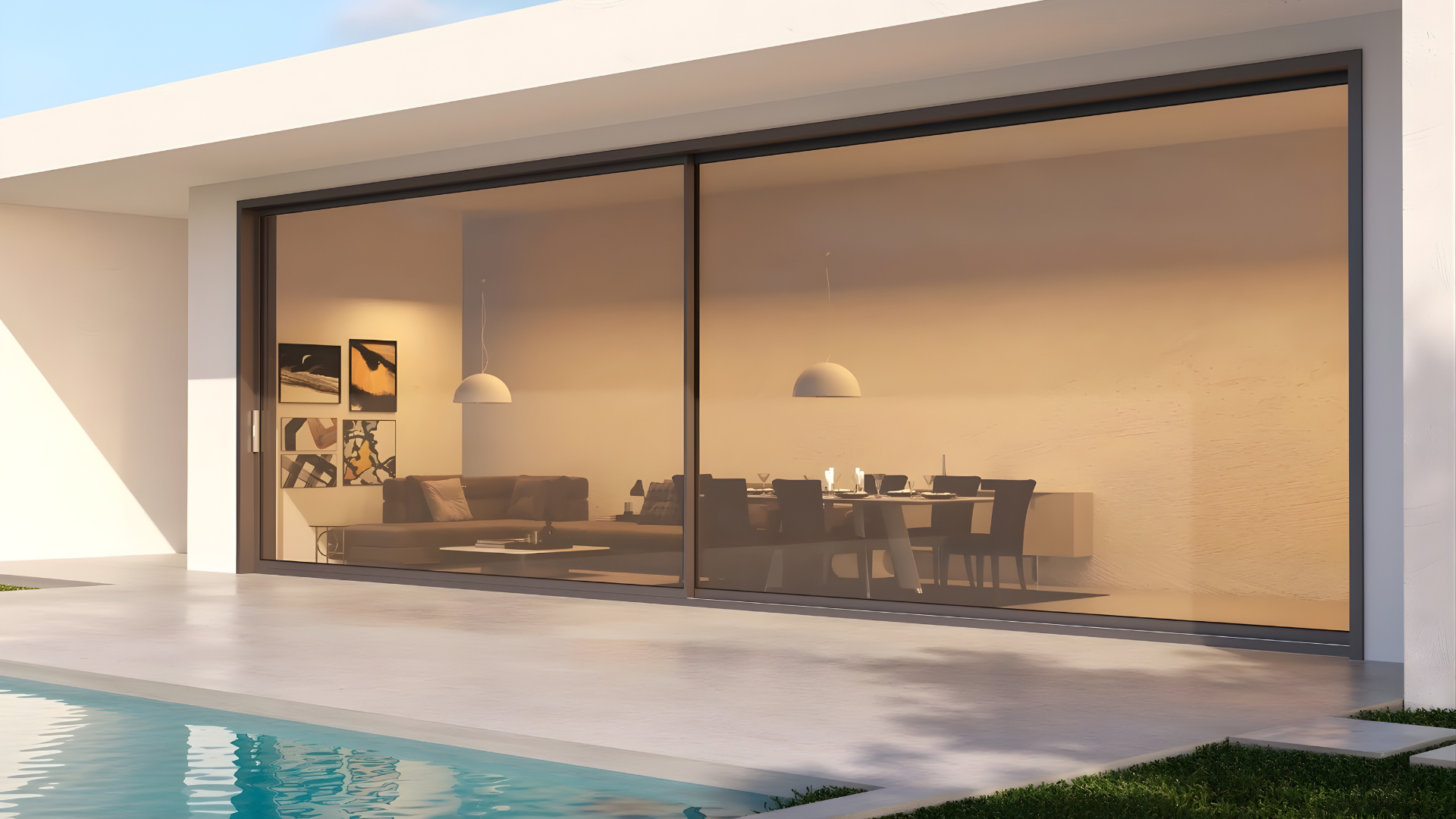

The VLX 150 exists for a specific kind of project: the Fort Worth rancher getting a full wall of glass, the new build off Chisholm Trail Parkway that wants indoor-outdoor flow to a patio, the commercial storefront in the Near Southside that needs a 20-foot entry that still moves on one finger. Most standard sliding doors top out around 12 to 16 feet. This series pushes to 24 feet, and the engineering changes that make that possible also make smaller installations feel more solid.

What separates this door from lighter residential sliders is the material story. The aluminum profile is 2.95 inches wide with a 0.118-inch wall, which is substantially thicker than the 0.060 to 0.080-inch walls common in entry-level sliders. That extra aluminum mass resists deflection, keeps the door running true, and lets the frame carry heavier insulated glass. The hardware is stainless steel throughout: rollers, tracks, keepers, and handles. In Fort Worth, where doors cycle open and closed hundreds of times a season between the air conditioning and the patio, cheap rollers bind and fail. Stainless hardware is the difference between a door that lasts ten years quietly and one that starts groaning in two.

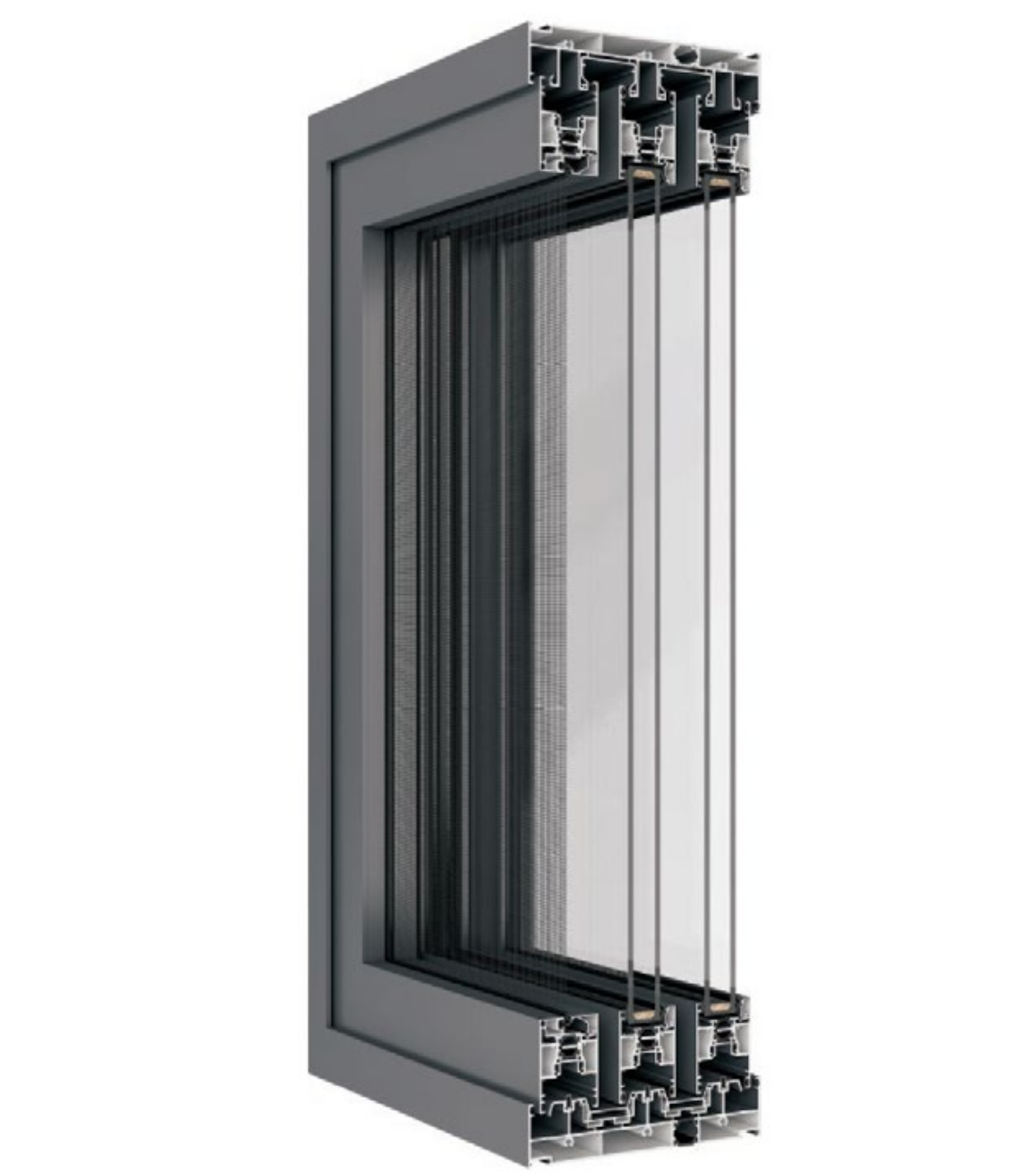

Multi-track configurations give you layout flexibility. A 2-track system is your standard two-panel arrangement with one operating panel and one fixed. A 3-track lets you stack two operating panels to one side, opening two-thirds of the span. A 4-track pushes that further, giving you three moving panels and a wider clear opening. For Fort Worth homeowners building a covered outdoor kitchen or a pool-facing wall, the track selection determines how much of that opening actually breathes when the weather’s right.

This is not a door you buy from a big-box shelf and hope fits. It’s measured, ordered, and installed for one opening. That’s where our role as a ViewLux-authorized installation partner matters.

Technical Specifications

Here are the numbers that matter for anyone comparing the VLX 150 against other heavy-duty sliders in the Fort Worth market:

• Wall thickness: 0.118 inches, roughly double the thickness of standard residential slider stock.
• Profile width: 2.95 inches, giving the frame structural depth for large glass units.
• Maximum span: Up to 24 feet wide, depending on glass unit weight, wind-load requirements, and panel count.

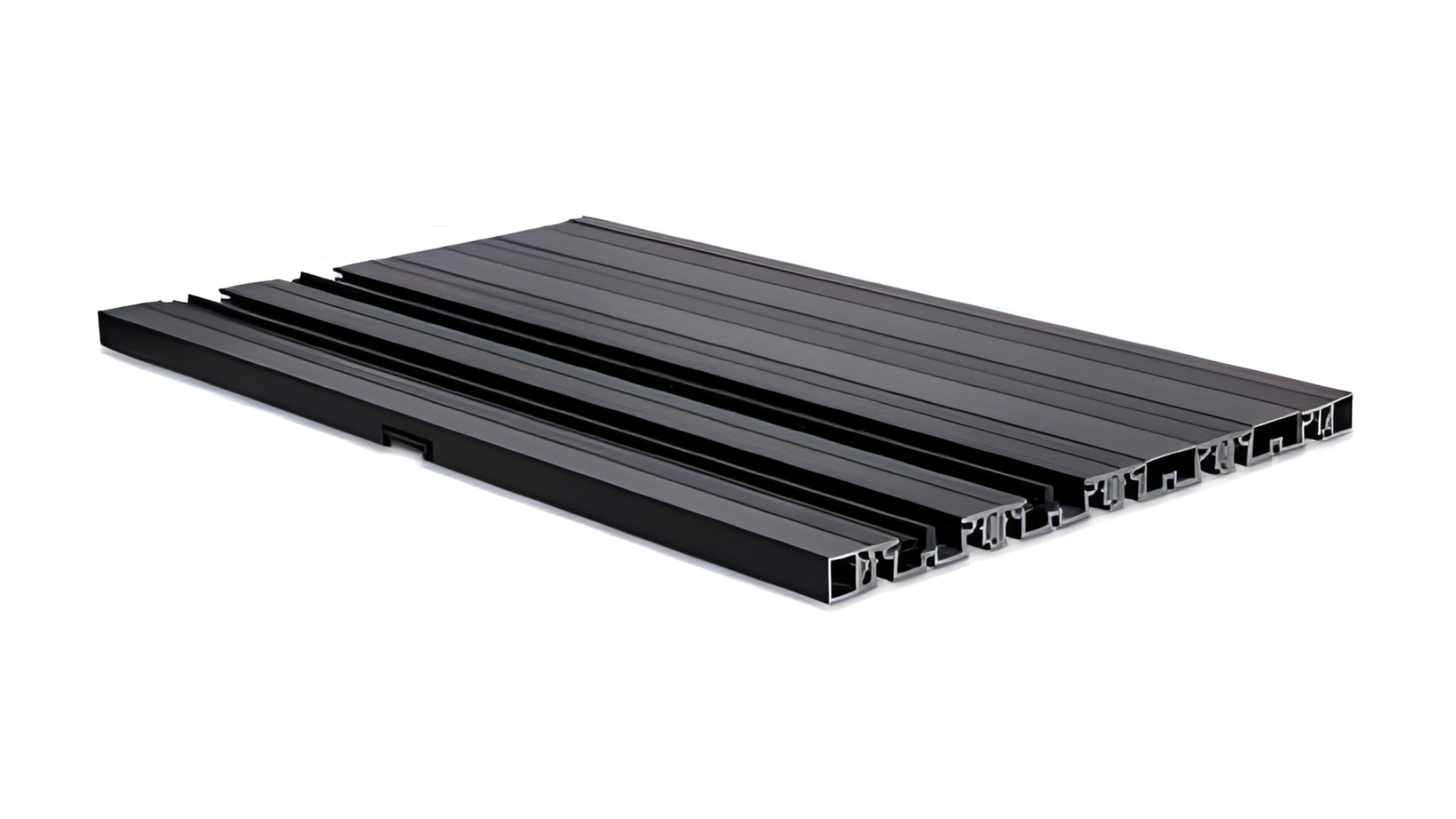

• Track configurations: 2-Track, 3-Track, and 4-Track, allowing two, three, or four panels in the frame pocket.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen or Sliding Screen, both available in matching frame finishes.
• Hardware: Stainless steel rollers, tracks, and locking hardware throughout.

Performance Features

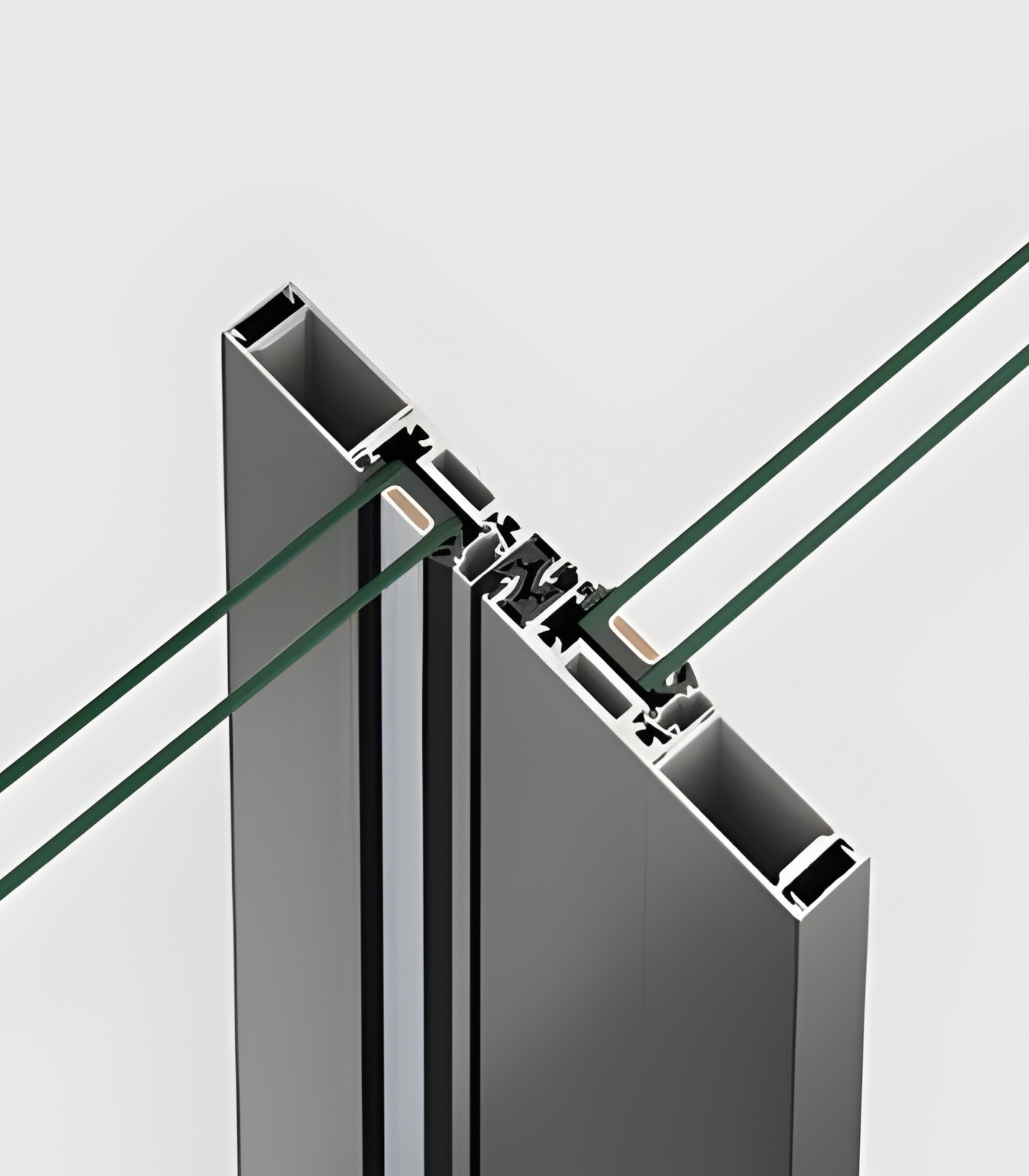

Thermal Efficiency: The VLX 150 frame carries a thermal break that separates the exterior and interior aluminum faces. That interruption is what stops Fort Worth summer heat from conducting straight through the metal into your living room. Pair the thermal-break frame with Low-E glass and the door earns NFRC-rated performance numbers that hold up in Tarrant County’s climate. The rating is real and testable, not a marketing adjective.

Acoustic Performance: Fort Worth homes near I-30, I-20, or the rail corridor through the Hospital District know what traffic noise does to a patio door. The VLX 150’s thicker 0.118-inch wall and heavier glass packages reduce sound transmission compared to stock sliders. Adding laminated glass takes sound control further, which matters when your back wall faces a busy thoroughfare.

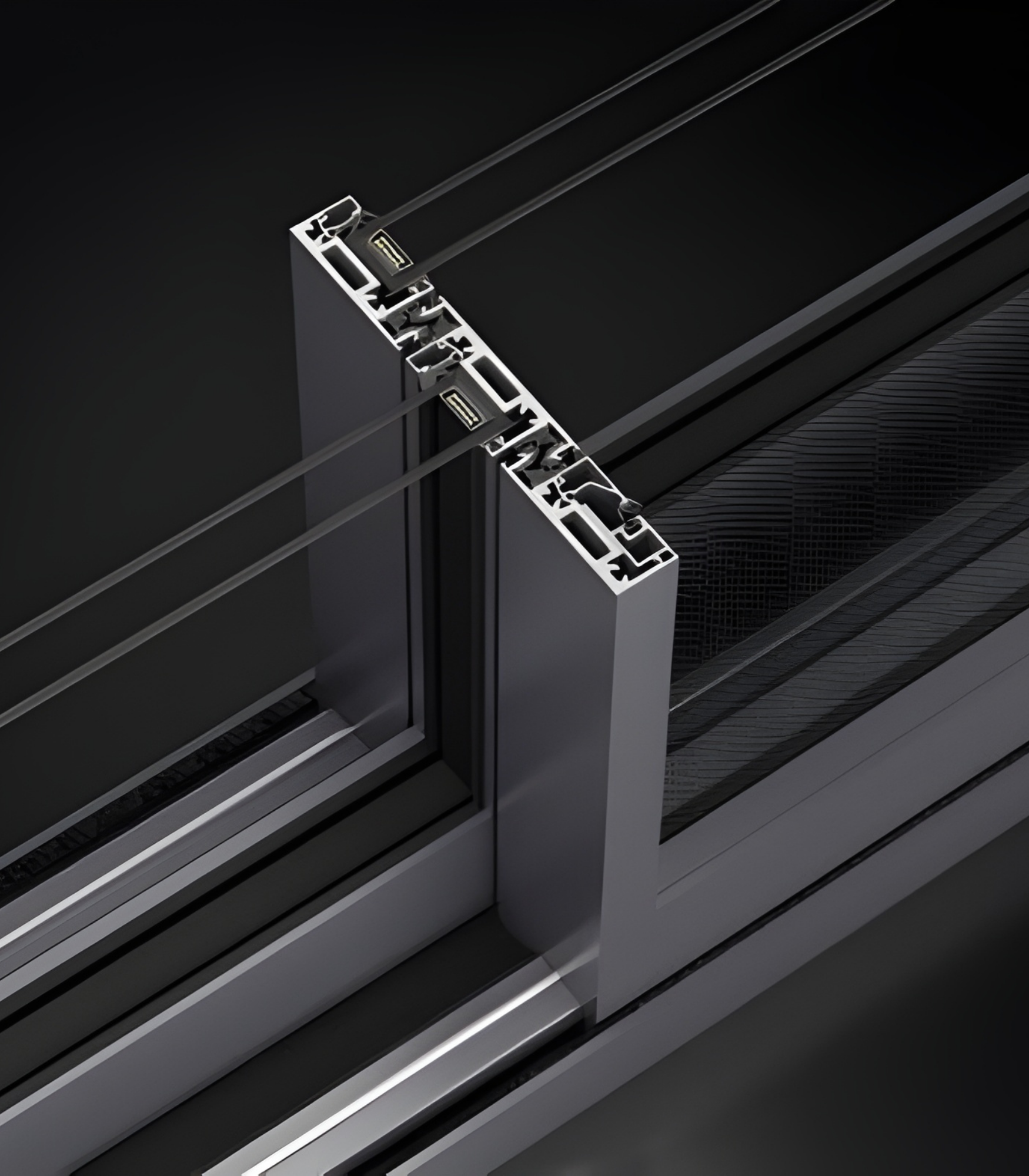

Airtightness and Weather Seal: The interlocking meeting stiles and compression gaskets on the VLX 150 are designed to stop air infiltration at the center meeting point, which is where most sliders leak. That’s the spot every Fort Worth home inspector pokes with a thermal camera. A door that scores well on airtightness keeps conditioned air in and does not give pollen season a path inside through the track.

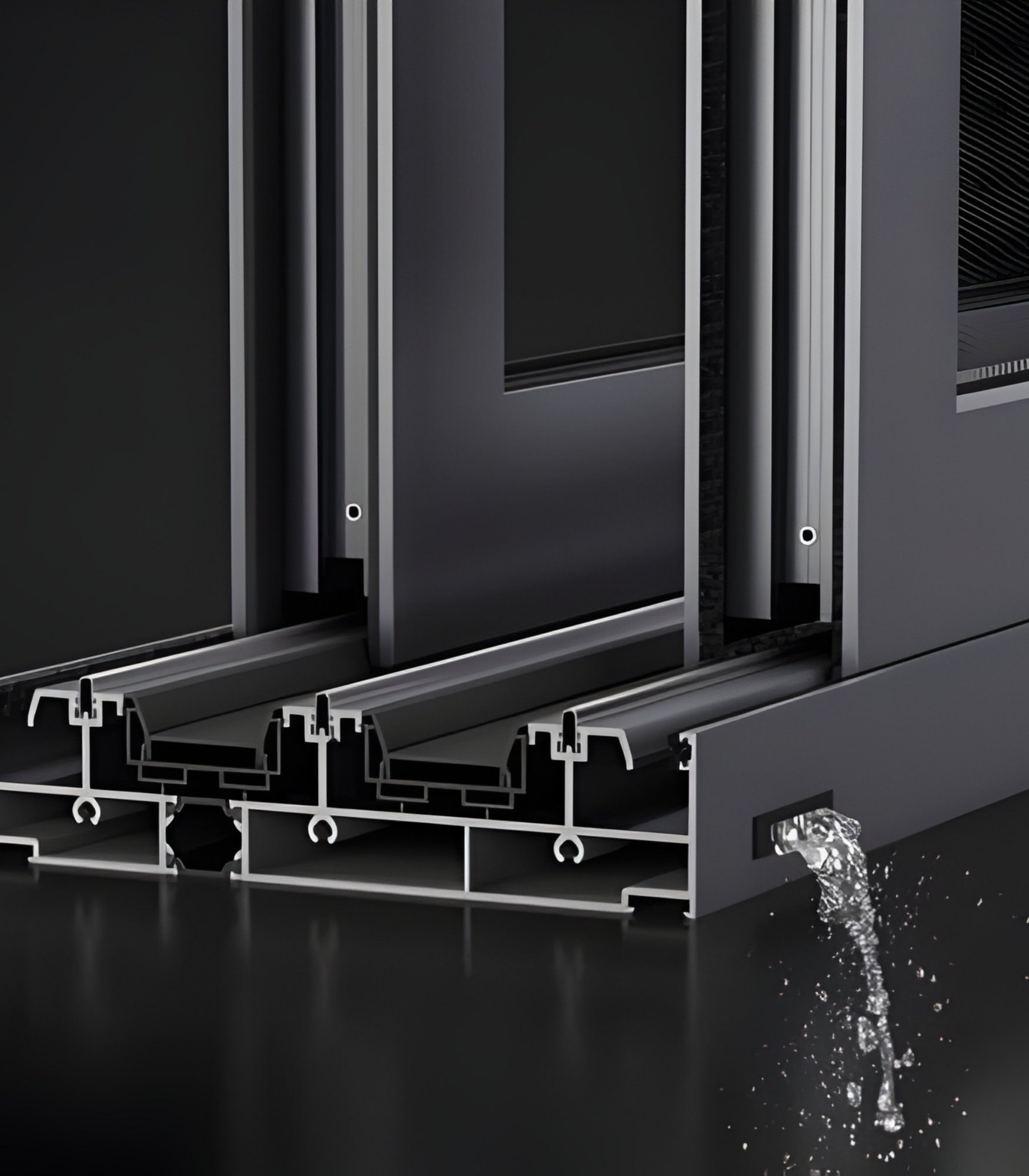

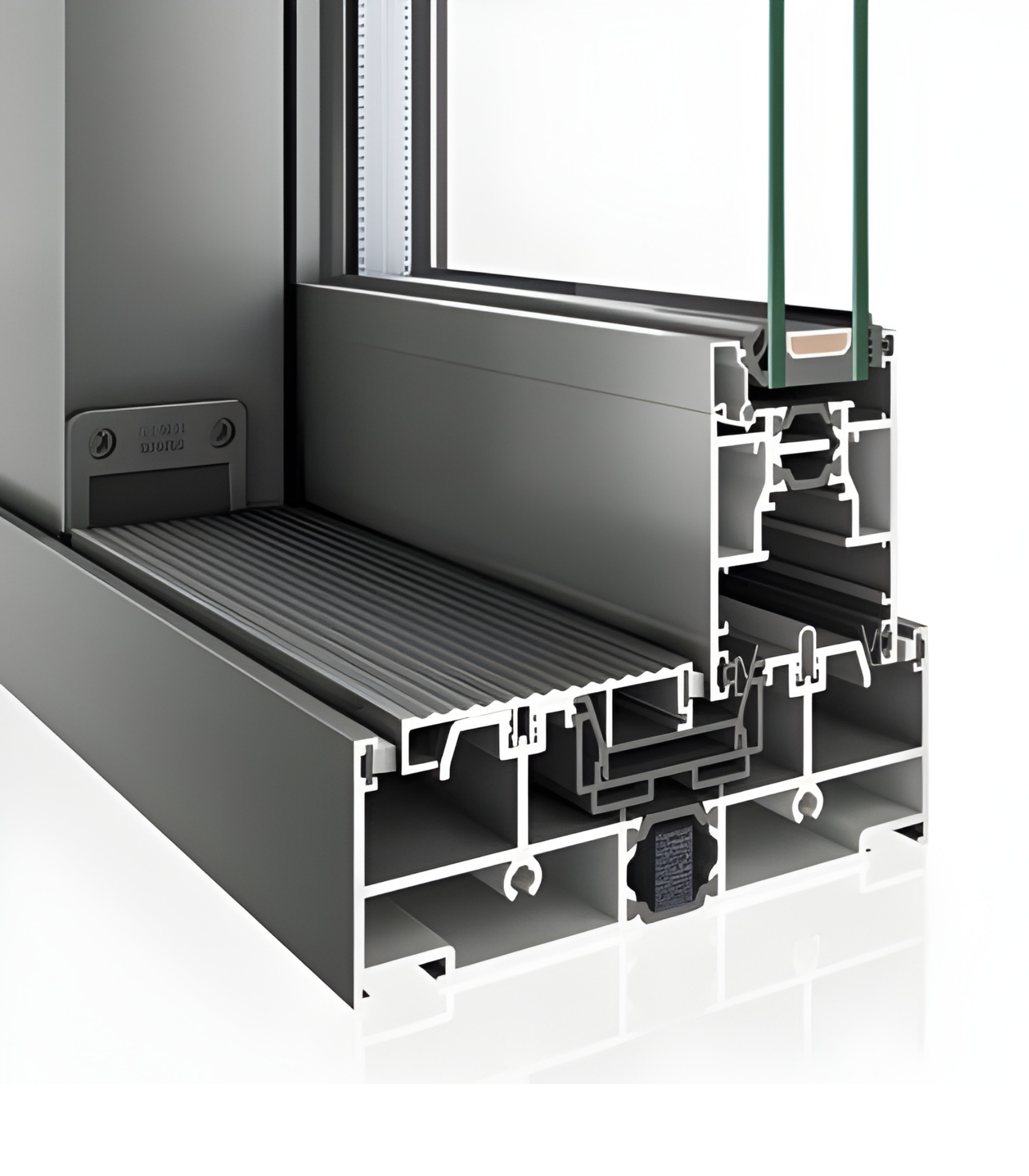

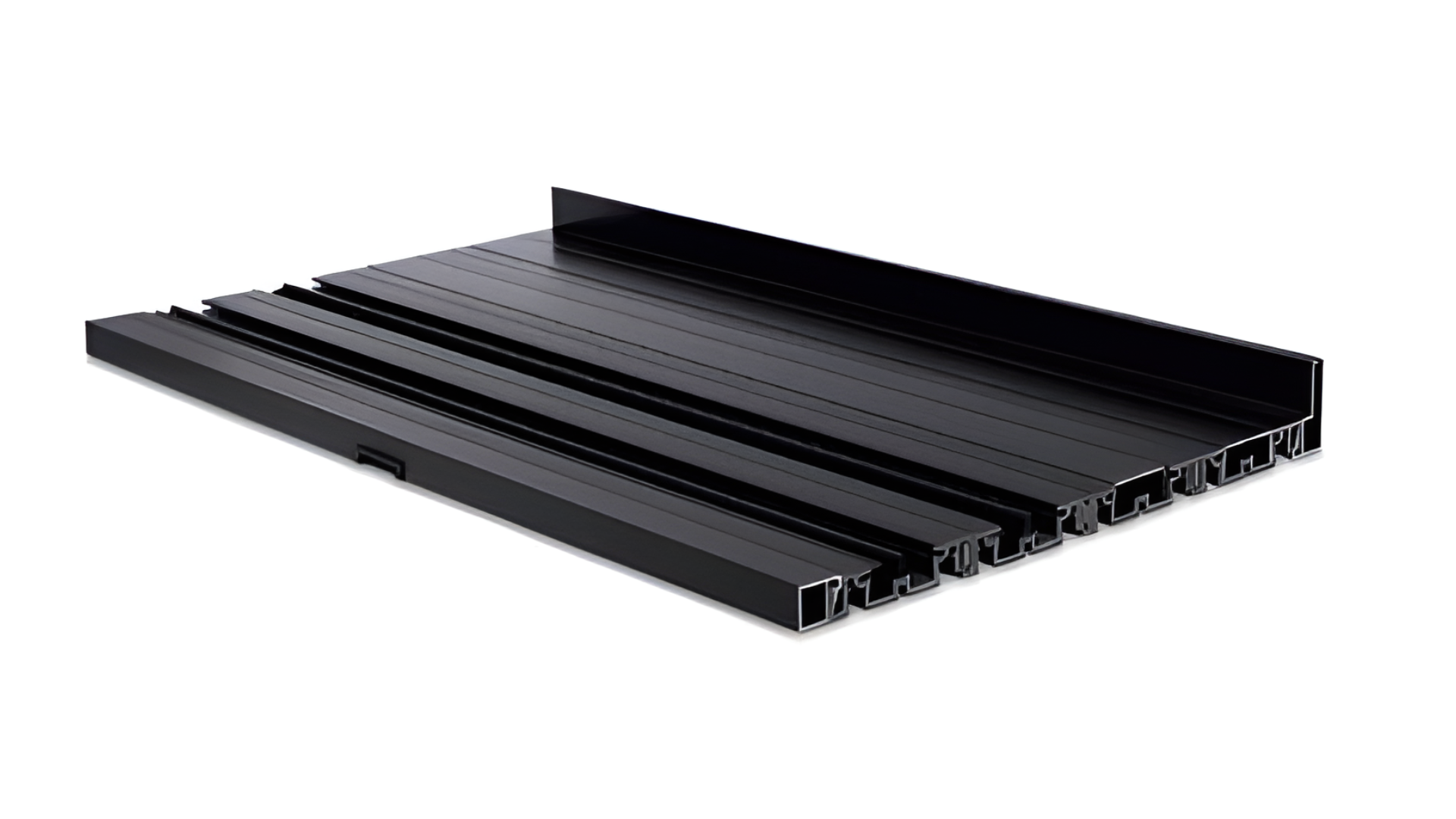

Waterproofing: The sill system includes drainage channels and weeps that direct any water that gets past the first gasket back out to the exterior. It’s not about keeping water from ever touching the track, because water will. It’s about making sure it exits. For Fort Worth’s spring thunderstorms, that drainage design is the difference between a dry floor and a soaked rug after a wind-driven rain.

Wind Resistance: The VLX 150 is wind-load rated to meet the building code requirements in this part of North Texas. Fort Worth sits in a wind zone that demands more from a 12-foot glass wall than, say, a 6-foot patio door in a protected subdivision. We specify the right glass thickness and frame reinforcement per opening so the final installed assembly meets the loads on paper and in practice.

Security and Hardware: The stainless multi-point locking hardware is integrated into the aluminum frame, not surface-mounted as an afterthought. Paired with the 0.118-inch wall, the door resists prying when we test it. For homeowners who want a higher bar, the laminated glass option holds together under impact instead of shattering into loose shards.

Color and Glass Options

Fort Worth architecture runs the spectrum: 1920s brick bungalows in Fairmount, mid-century ranches in Wedgwood, contemporary builds in Walsh and Montrachet. The VLX 150 finish range covers all of it. Premium Black is the current default for modern Fort Worth builds and reads sharp against white brick or stucco. Pure White suits traditional interiors and lighter transitional homes, especially where the slider ties into existing white trim. Anodized Silver gives a clean industrial look that holds up to Texas sun without fading. Bronze works beautifully on ranch homes with earth-tone brick, and it hides dust better than black. Champagne is the quiet luxury finish that pairs with warm neutrals and limestone. Teak Wood is a film finish that mimics the warmth of wood grain on an aluminum frame, which works when the interior wants wood tones but the exterior needs maintenance-free framing.

On glass: Clear is what it sounds like, and it’s the least expensive starting point. Low-E is the coating that blocks infrared heat gain, which in Fort Worth is not optional if the door faces west. Tempered meets the code requirement for safety glazing next to doors and floors. Laminated adds impact resistance, security, and acoustic damping: choose it if the door is large, exposed, or facing a busy street. Gray Tint and Black Tint cut glare and solar heat where the opening faces full west sun, at the cost of some visible light. Most Fort Worth quotes we write pair Low-E with tempered as the baseline, then add laminated or tint based on the exposure.

Installation by Meridian Windows and Doors Fort Worth in Fort Worth

A heavy-duty slider is only as good as the day it was set. We’ve pulled out factory-warrantied doors in Fort Worth that failed because they were installed out of square by a crew that treated a 20-foot span like a bedroom window. The manufacturer will not cover that. The opening must be framed exactly, the sill must be dead level, and the panels must be plumb in all three axes before a single screw goes in.

Our installation process for every VLX 150 in Fort Worth starts with a pre-install inspection of the rough opening. We verify the header, the king and jack studs, and the floor elevation with a laser level before ordering or uncrating anything. When the frame goes in, we set it level, plumb, and square using shims behind the frame anchors, never by bending the aluminum. The perimeter gets AAMA 812 low-expansion foam sealant at every joint, which creates an air and moisture barrier that does not expand with enough force to bow the frame. Then we flash and seal the exterior per AAMA 2400 and 2410 installation standards, which are the governing standards for window and door installation performance. Before we call the job done, we run a water test on the sill and the head, cycle the panel several times to verify smooth travel, and walk the homeowner through operation and maintenance.

Fort Worth presents a few specific conditions. Our clay-heavy soils move with moisture swings, which means slab deflection under a large slider opening is a real consideration, especially in older neighborhoods like Handley or Ridglea Hills. Texas heat and high UV put more strain on sealants and weeps than northern climates, which is why the foam perimeter detail matters. And local storm seasons test wind-driven rain. We install for those conditions, not for a showroom.

The practical point is this: a VLX 150 installed wrong still fails for the same reasons a cheap door does. A VLX 150 installed right is one of the lowest-maintenance, longest-lasting openings a Fort Worth home can have.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door? Lead time for a VLX 150 in Fort Worth typically runs three to five weeks from final measurement approval to delivery at our shop, depending on the glass package and finish selected. Custom finishes and laminated glass can push the order toward the longer end. We confirm the lead time in writing when you place the order, and we coordinate installation scheduling so your project doesn’t stall on the delivery date. Call (682) 708-0962 for a current lead time based on your exact configuration.

Does the VLX 150 qualify for energy tax credits? The VLX 150 can qualify for federal energy tax credits when configured with glass packages that meet the Energy Star requirements for the South Central climate zone. Fort Worth falls into a zone that requires specific U-factor and Solar Heat Gain Coefficient thresholds, and not every glass combination meets them. The Low-E options, particularly with the right coating, are designed to hit those performance levels. We can walk you through the qualifying configurations when we quote your project.

What warranty comes with the VLX 150 Heavy-Duty Sliding Door? The VLX 150 carries a ViewLux manufacturer warranty that covers the aluminum frame and hardware against manufacturing defects, and the warranty stays valid only when the door is installed by an authorized partner following the manufacturer’s installation requirements. Meridian Windows and Doors Fort Worth is a ViewLux-authorized installation partner, so our installation keeps your warranty intact. Our own workmanship is also covered by our installation warranty. We’ll put the specific warranty terms in your quote.

Can I customize the size of my VLX 150? Yes. The VLX 150 is built for a specific opening, not cut down from stock, so every door we order in Fort Worth is made to the measured dimensions of your wall. The series handles spans up to 24 feet wide, and your panel width, height, track count, and operating direction are all selected per project. That’s one reason the pre-install measurement step is non-negotiable: we’re ordering a door, not a guess.

How do I maintain the aluminum frame and track? Maintenance on an aluminum VLX 150 in Fort Worth comes down to keeping the track clear of debris and the weeps unblocked. Vacuum the bottom track when dust and grass clippings build up, and check the weep holes on the exterior sill so drainage keeps working during spring rains. The stainless hardware is sealed and doesn’t need lubrication in most cases; adding grease actually attracts grit and shortens roller life. Wipe the frame with mild soap and water, avoid abrasive cleaners on the finish, and inspect the weatherstripping once a year. That’s the whole routine.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Fort Worth

If you’re planning an oversized opening or replacing a slider that has underperformed for years, start with a real number. Call Meridian Windows and Doors Fort Worth at (682) 708-0962 to schedule a free on-site measurement. We’ll walk the opening, talk through track and glass options, and give you a written quote with line-item pricing so you know exactly what the door and the installation cost before you commit. Our showroom and service area cover all of Fort Worth and the surrounding Tarrant County communities.

Written by Meridian Windows and Doors Fort Worth, serving Fort Worth, TX as a ViewLux-authorized installation partner.
